Wren PIC18 Modular MultiBoard

PDF datasheet and reference files.

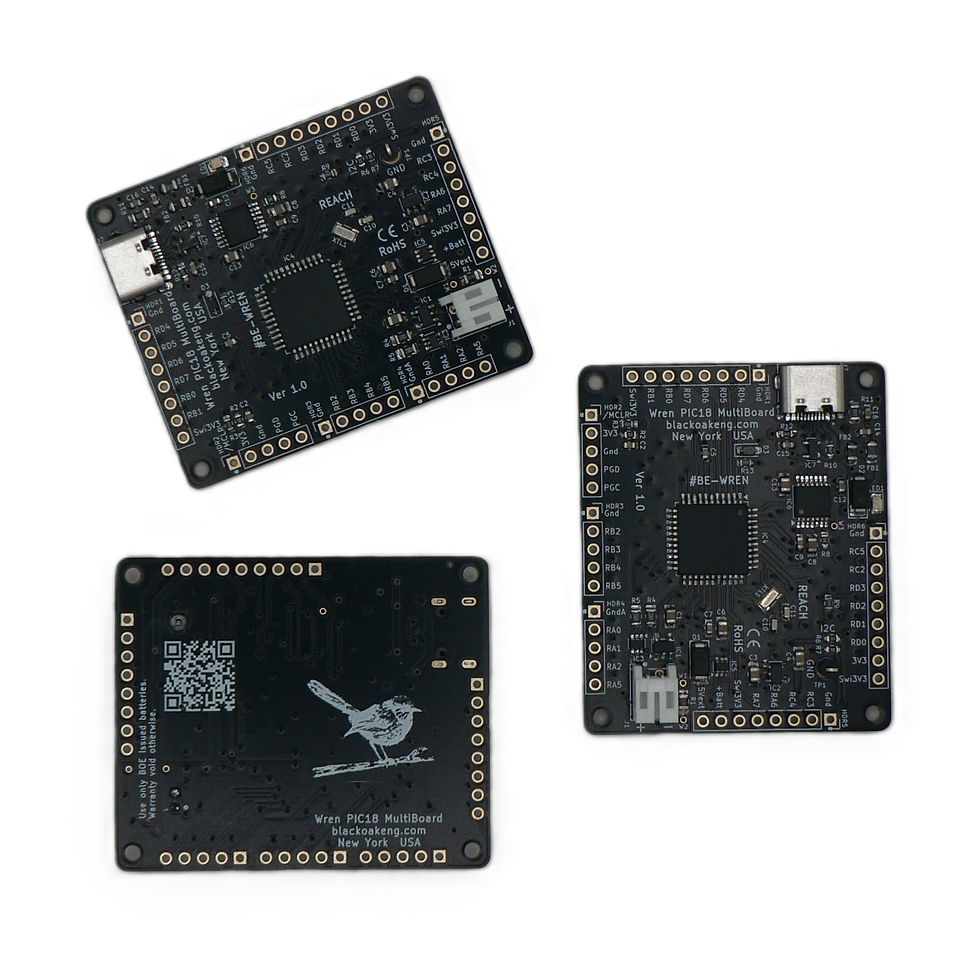

Description. The Black Oak Engineering (BOE) Wren PIC18F Modular MultiBoard (#BE-WREN) is a compact computing platform based on the popular 8-bit Microchip PIC18F47Q84. It has breakouts to add a variety of daughterboards, which are widely available and Open Source design, so that they are easily generated. The Wren is ready for many challenging control and data capture applications.

Basic PIC18F47Q84 specifications:

• RISC, 64 MHz, 64K × 16 Flash, 8K × 8 RAM, 1K × 8 EEPROM.
• XLP Extremely low power modes.
• CAN, DMA, IIC, PWM, SPI, UART.
• 12 bit SAR ADC, 8 bit DAC.
• Easily programmable with Microchip’s free MPLAB XC Standard features development environment.
• May be used with a lithium polymer battery, recharged via USB.
• Battery has self-check and current monitoring.
• Open Source breakout footprint.
• Serial Flash memory 2Mb.
• USB Device, USB-C connector. CDC mode serial communications (COM port).
• Real Time Clock.
• IO broken out on 100 mil (2.54 mm) headers. Any standard header pins or sockets may be added.
• 4× dedicated analog low noise inputs.
• Low power design.
• All peripherals have dedicated power switch.
• Transient protection.
• Diagnostic LED.
• PCBA is 2.0 × 1.7 inches (52 × 44 mm).
• Temperature operating range: -40 to +85 °C (-40 to +185 °F)
• 4× 2-56 (or M2) mounting holes. Package includes one 3’ (1 m) USB-C cable.

BOE is continuously improving. We also strive to keep one step ahead of procurement shortfalls. We will deliver to you the latest hardware version possible. In some cases specifications will change.

Environmental

• Temperature. -40 to +85 °C (-40 to +185 °F), excluding battery option.
• Humidity / water exposure. The PCBA does not include a protective enclosure. Nor is it conformally coated. Condensing humidity and water exposure must be completely avoided.

Approvals & Compliance

• RoHS.
• REACH.
• California Prop 65.

Value Added Design. Want to use the BlueJay in a new project or OEM application, but need a little assistance? Not a problem. BOE contracts regularly with end users for value added design.

Warranty Policy

Any instrument ordered from BOE may be returned for full refund, less shipping costs, within 30 days of delivery, provided that the instrument has not, in the opinion of BOE been damaged or misused. An RMA number is required in all cases. See our Standard Terms & Conditions – Instruments for more details.

BOE reserves the right to make changes to these specifications as it deems necessary. All technical information contained herein is as accurate as possible; however BOE shall not be held responsible for any errors or for product use, nor for any infringements upon the rights of others which may result from its use. BOE products are not to be used in life support or safety critical applications.

All BOE products are designed and manufactured in the USA.

EAN : 0729043992676

Volume Discounts :  There are volume breaks at 5, 10, 25, and 50 units.

GitHub : Source code files and useful collateral.
